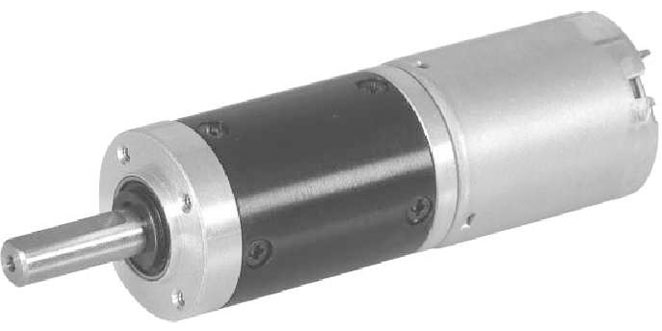

Permanent Magnet DC Brushed Planetary Gear Motor

Permanent Magnet DC Brushed Planetary Gear Motor

Magnes perpetuus DC De 24JN10K/24ZY30 calceis motoriis permanentis dc calceis planetariis metallicis utitur structura calces planetariae exterioris diametri 24 mm et permittit torquem range 0.1N.m ad 1.0N.m. Suscipe 12V/24V duplicem intentionem, nullo onere celeritas ad 8000- 12000 rpm.

  • Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquisitionis
PREV：Magnet DC Brushed Planetary Gear Motor
DEINDE：Permanent Magnet DC Motor Gear Planetarius Brushed

+86 0579-86817938-836

[email protected]

24JN10K/24ZY30(2)

24mm OD Gearbox Planetarius,

Licet Lond dolor: 0.1N.m~1.0N.m

PM DC Planetary Apparatus Motor (Ring Gear Material: Metal)

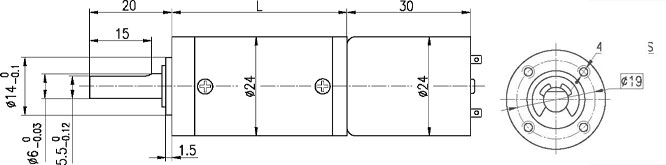

Dimensiones

Motor Technical Data

Type

Ratum Voltage VDC

Nullus onus Volo r / min

Nullus onus current mA

Rated Volo r / min

Rated torquem N.m

Output Power W

Ratum vena mA

Armen Aureus mN.m

Armen Current A

24ZY30-1280

12

8000

80

6500

3

2

300

16

1.2

24ZY30-12100

12

10000

100

7700

4

3.1

420

16

1.6

24ZY30-24120

24

12000

140

9000

3.5

3.2

300

19

1.2

Motor Technical Data Apparatus

Configurationis 24ZY30-1280 DC Motor(24ZY30-1280 DC Motor)

Reductio ratio

14

19

27

51

71

100

139

189

264

369

516

Multis impedimenta calces

2

2

2

3

3

3

3

4

4

4

4

Longitudo(L) mm

31.6

31.6

31.6

38

38

38

38

44.4

44.4

44.4

44.4

Nullus onus celeritas r / min

571

421

296

157

113

80

58

42

30

22

16

Rated celeritatem r / min

464

342

241

127

92

65

47

34

25

18

13

Rated Aureus N.m

0.034

0.046

0.066

0.11

0.16

0.22

0.3

0.37

0.51

0.72

1

Maximilianus. licitum onus in brevi N.m

1.2

1.2

1.2

2.5

2.5

2.5

2.5

3

3

3

3

Configuratio 24ZY30-12100 DC Motor (24ZY30-12100 DC Motor)

Reductio ratio

14

19

27

51

71

100

139

189

264

369

Multis impedimenta calces

2

2

2

3

3

3

3

4

4

4

Longitudo(L) mm

31.6

31.6

31.6

38

38

38

38

44.4

44.4

44.4

Nullus onus celeritas r / min

714

526

370

196

141

100

72

53

38

27

Rated celeritatem r / min

550

405

285

151

108

77

55

41

29

21

Rated Aureus N.m

0.045

0.062

0.087

0.15

0.21

0.29

0.41

0.49

0.69

0.96

Maximilianus. licitum onus in brevi N.m

1.2

1.2

1.2

2.5

2.5

2.5

2.5

3

3

3

Configurationis 24ZY30-24120 DC Motor (24ZY30-24120 DC Motor)

Reductio ratio

14

19

27

51

71

100

139

189

264

369

Multis impedimenta calces

2

2

2

3

3

3

3

4

4

4

Longitudo(L) mm

31.6

31.6

31.6

38

38

38

38

44.4

44.4

44.4

Nullus onus celeritas r / min

857

632

444

235

169

120

86

63

45

33

Rated celeritatem r / min

643

474

333

176

127

90

65

48

34

24

Rated Aureus N.m

0.04

0.054

0.077

0.13

0.18

0.26

0.36

0.43

0.6

0.84

Maximilianus. licitum onus in brevi N.m

1.2

1.2

1.2

2.5

2.5

2.5

2.5

3

3

3
