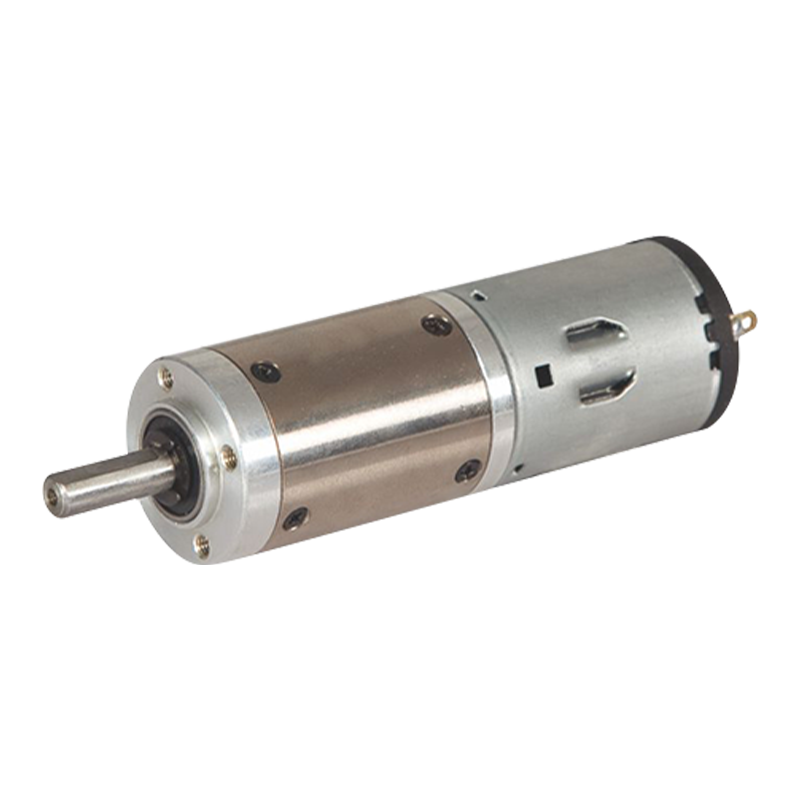

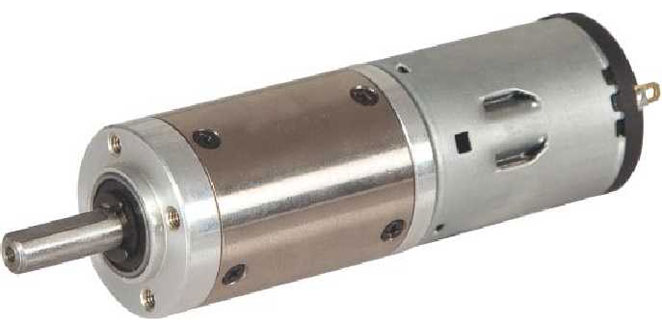

Magnet DC Brushed Planetary Gear Motor

Magnet DC Brushed Planetary Gear Motor

Potestas output huius producti notatur per altas torques et stabilis output. Mechanismus planetarum calces magnam rationem transmissionis consequi potest, celeritatem motoris minuere et eam in output magnum torquere, ad onera depellenda apta maiorem vim requirentem. Transmissio structura symmetrica est, vis uniformis, et operatio lenis est, quae stabilis virtutis output et torquem fluctuationem minuere potest..

  • Magnet DC Brushed Planetary Gear Motor
Download Product Inquisitionis
PREV：Permanent Magnet DC Brushed Planetary Gear Motor
DEINDE：Permanent Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

28JN30K/28ZY38

28mm OD Gearbox Planetarius,

Licet Lond dolor: 0.3N.m~3.0N.m

PM DC Planetary Apparatus Motor (Ring Gear Material: Metal)

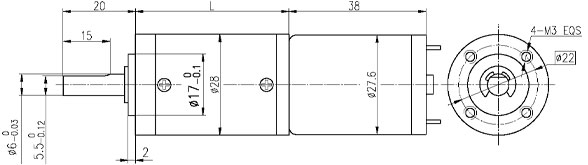

Dimensiones

Motor Technical Data

Type

Ratum Voltage VDC

Nullus onus Volo r / min

Nullus onus current mA

Rated Volo r / min

Rated Aureus mN.m

Output Power W

Ratum vena mA

Armen Aureus mN.m

Armen Current A

28ZY38-1240

12

4000

80

2600

7

1.86

350

20

0.75

28ZY38-1250

12

5000

100

3450

7

2.48

370

21.5

0.9

28ZY38-2450

24

5000

70

3800

7

2.78

230

25

0.7

Motor Technical Data Apparatus

Configurationis 28ZY38-1240 DC Motor(28ZY38-1240 DC Motor)

Reductio ratio

3.7

5.2

14

19

27

51

71

100

139

189

264

369

516

720

Multis impedimenta calces

1

1

2

2

2

3

3

3

3

4

4

4

4

4

Longitudo(L) mm

29

29

36.1

36.1

36.1

43

43

43

43

49.9

49.9

49.9

49.9

49.9

Nullus onus celeritas r / min

1078

772

286

211

148

78

56

40

29

21

15

11

7.8

5.6

Rated celeritatem r / min

701

502

186

137

96

51

37

26

19

14

9.8

7

5

3.6

Rated Aureus N.m

0.023

0.033

0.079

0.11

0.15

0.26

0.36

0.51

0.71

0.86

1.2

1.7

2.4

3.6

Maximilianus. licitum onus in brevi N.m

1

1

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9

9

9

Configurationis 28ZY38-1250 DC Motor(28ZY38-1250 DC Motor)

Reductio ratio

3.7

5.2

14

19

27

51

71

100

139

189

264

369

516

720

Multis impedimenta calces

1

1

2

2

2

3

3

3

3

4

4

4

4

4

Longitudo(L) mm

29

29

36.1

36.1

36.1

43

43

43

43

49.9

49.9

49.9

49.9

49.9

Nullus onus celeritas r / min

1348

965

357

263

185

98

70

50

36

26

19

14

9.7

6.9

Rated celeritatem r / min

930

666

246

182

128

68

49

35

25

18

13

9.3

6.7

4.8

Rated Aureus N.m

0.023

0.033

0.079

0.11

0.15

0.26

0.36

0.51

0.71

0.86

1.2

1.7

2.3

3

Maximilianus. licitum onus in brevi N.m

1

1

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9

9

9

Configure 28ZY38-2450 DC Motor(28ZY38-2450 DC Motor)

Reductio ratio

3.7

5.2

14

19

27

51

71

100

139

189

264

369

516

720

Multis impedimenta calces

1

1

2

2

2

3

3

3

3

4

4

4

4

4

Longitudo(L) mm

29

29

36.1

36.1

36.1

43

43

43

43

49.9

49.9

49.9

49.9

49.9

Nullus onus celeritas r / min

1348

965

357

263

185

98

70

50

36

26

19

14

9.7

6.9

Rated celeritatem r / min

1024

734

271

200

141

75

54

38

27

20

14

10

7.4

5.3

Rated Aureus N.m

0.023

0.033

0.079

0.11

0.15

0.26

0.36

0.51

0.71

0.86

1.2

1.7

2.3

3

Maximilianus. licitum onus in brevi N.m

1

1

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9

9

9
