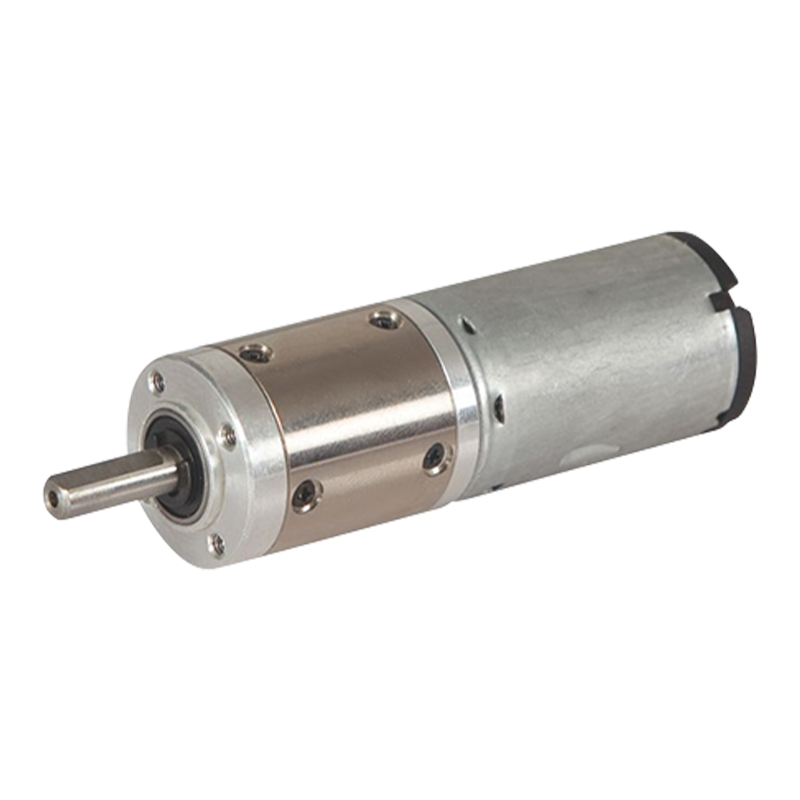

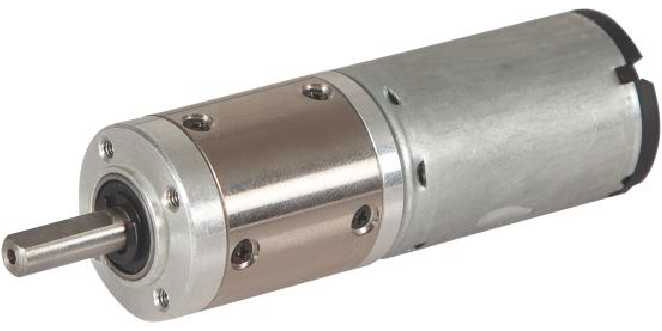

Permanent Magnet DC Brushed Planetary Gear Motor

Permanent Magnet DC Brushed Planetary Gear Motor

28JN30K/28ZY47 magnetis permanentis DC calces motoris planetarii utitur structura calces planetariae metallicae diametri exterioris 28 mm, permittens amplitudinem torquem 0.3N.m ad 3.0N.m. Support 12v/24v intentione duali, celeritas nulla onus est 6000rpm.
Productum, cum congruae regiminis systematis coniunctum, altam dignitatem accurate consequi potest, ad aliquas positiones imperium requisita strictas opportunitates idoneas. In quodam onere range, efficientia altior est, machinae transmissio efficientia superior est, et sub iure oneris condiciones, tota ratio motoria bonam industriam conversionis efficientiam servare potest et industriam consummationem minuere..

  • Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquisitionis
PREV：Magnet DC Brushed Planetary Gear Motor
DEINDE：Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

28JN30K/28ZY47

28mm OD Gearbox Planetarius,

Licet Lond dolor: 0.3N.m~3.0N.m

PM DC Planetary Apparatus Motor (Ring Gear Material: Metal)

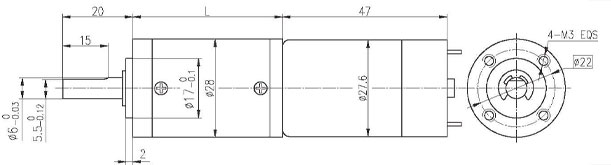

Dimensiones

Motor Technical Data

Type

Ratum Voltage VDC

Nullus onus Volo r / min

Nullus onus current mA

Rated Volo r / min

Ratum torquemN.m

Output Power W

Ratum vena mA

Armen Aureus mN.m

Armen Current A

28ZY47-1260

12

6000

130

5200

7.7

4.2

500

23

1.5

28ZY47-2460

24

6000

80

5140

9.2

5.0

300

28

0.9

Motor Technical Data Apparatus

Configurationis 28ZY47-1260 DC Motor(28ZY47-1260 DC Motor)

Reductio ratio

3.7

5.2

14

19

27

35

51

71

100

139

189

264

369

495

596

Multis impedimenta calces

1

1

2

2

2

2

3

3

3

3

4

4

4

4

4

Longitudo(L) mm

29

29

36.1

36.1

36.1

36.1

43

43

43

43

49.9

49.9

49.9

49.9

49.9

Nullus onus celeritas r / min

1617

1158

429

316

222

171

118

85

60

43

32

23

16

12

10

Rated celeritatem r / min

1402

1004

371

274

193

149

102

73

52

37

28

20

14

11

8.7

Rated Aureus N.m

0.026

0.036

0.087

0.12

0.17

0.22

0.29

0.4

0.56

0.78

0.95

1.3

1.8

2.5

3

Maximilianus. licitum onus in brevi N.m

0.6

0.6

2.5

2.5

2.5

2.5

5

5

5

5

6

6

6

6

6

Configuratio 28ZY47-2460 DC Motor (28ZY47-2460 DC Motor)

Reductio ratio

3.7

5.2

14

19

27

35

51

71

100

139

189

264

369

495

596

Multis impedimenta calces

1

1

2

2

2

2

3

3

3

3

4

4

4

4

4

Longitudo(L) mm

29

29

36.1

36.1

36.1

36.1

43

43

43

43

49.9

49.9

49.9

49.9

49.9

Nullus onus celeritas r / min

1617

1158

429

316

222

171

118

85

60

43

32

23

16

12

10

Rated celeritatem r / min

1385

992

367

271

190

147

101

72

51

37

27

19

14

10

8.6

Rated Aureus N.m

0.031

0.043

0.104

0.14

0.2

0.26

0.34

0.48

0.67

0.93

1.1

1.6

2.2

3

3

Maximilianus. licitum onus in brevi N.m

0.6

0.6

2.5

2.5

2.5

2.5

5

5

5

5

6

6

6

6

6

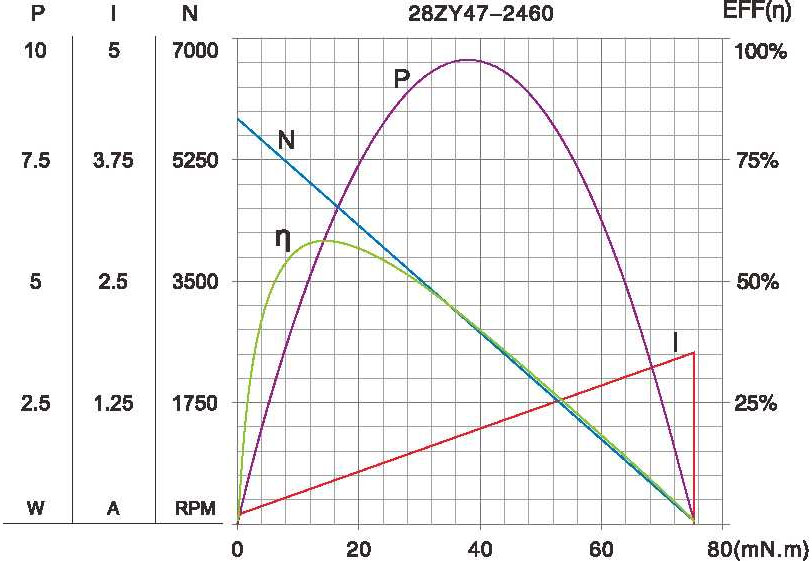

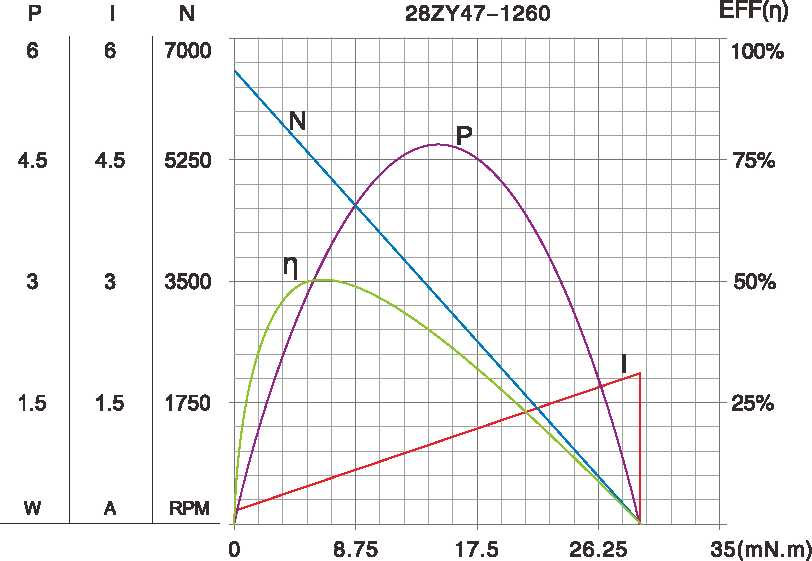

Motricium Proprium Figurae

A-6

Technical parametri sunt mutabilia sine praevia.*
