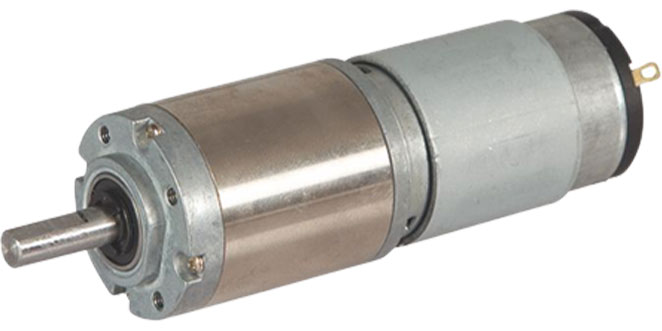

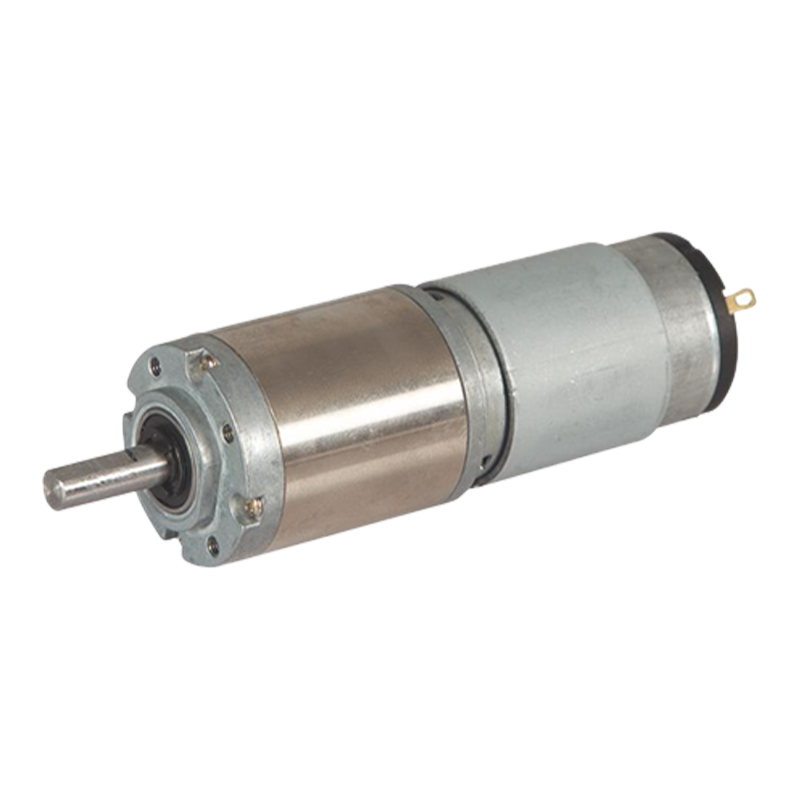

Magnet DC Brushed Planetary Gear Motor

Magnet DC Brushed Planetary Gear Motor

32JXE20k/28ZY47p magnetis permanentis DC calces motoris planetarii anulus interior factus ex materia metallica, diametro exterioris 32 mm. Suscipe 12v/24v intentionem dualem, celeritatem nullo onere 7300rpm.

Productum 32JXE20K/28ZY47P calces planetarum coegi lenis, strepitus humilis. Meshing inter anni constantius, vibratio et ictum parva sunt, et strepitus reducitur. In nonnullis locis cum magno strepitu requisitorum, ut munus armorum, robotarum domesticorum, etc., quietam operandi ambitum praebere potest.

32jxe20k/28zy47p celeri responsio, peniculus motor ipse habet bonam indolem dynamicam responsionis, cum stabili transmissione machinae calces planetariae coniunctae, ita ut motor calces planetarius peniculus cito et accurate componat celeritatem et torquem, recepto signo imperii, accurate temperare consequi. In positione ditionis linearum productionis automated, positio partium mechanicarum motus accurate coerceri potest.

  • Magnet DC Brushed Planetary Gear Motor
Download Product Inquisitionis
PREV：Permanent Magnet DC Motor Gear Planetarius Brushed
DEINDE：Permanent Magnet DC L. Motor Apparatus Planetarius Gear

+86 0579-86817938-836

[email protected]

32JXE20K/28ZY47P

32mm OD Planetarium Gearbox,

Licet Lond dolor: 0.2N.m~2.0N.m

PM DC Planetary Apparatus Motor (Ring Gear Material: Metal)

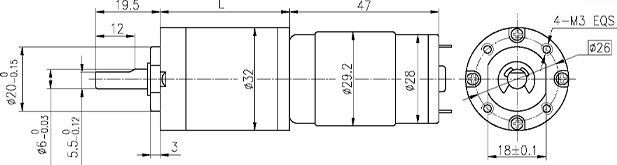

Dimensiones

Standard output hastile OD 6mm, OD 8mm optional.

Motor Technical Data

Type

Ratum Voltage VDC

Nullus onus Volo r / min

Nullus onus current mA

Rated Volo r / min

Ratum torquemN.m

Output Power W

Ratum vena mA

Armen Aureus mN.m

Armen Current A

28ZY47P-1273

12

7300

150

5950

10.8

6.7

900

32

2.7

28ZY47P-2473

24

7300

85

6160

12.7

8.2

500

38

1.5

Motor Technical Data Apparatus

Configuratio 28ZY47P-1273 DC Motor (28ZY47P-1273 DC Motor)

Reductio ratio

3.7

5.2

14

19

27

35

51

71

100

139

189

254

354

495

596

Multis impedimenta calces

1

1

2

2

2

2

3

3

3

3

4

4

4

4

4

Longitudo(L) mm

25.7

25.7

32.8

32.8

32.8

32.8

39.7

39.7

39.7

39.7

46.6

46.6

46.6

46.6

46.6

Nullus onus celeritas r / min

1968

1409

521

384

270

209

143

103

73

53

39

29

21

15

12

Rated celeritatem r / min

1604

1149

425

313

220

170

117

84

60

43

31

23

17

12

10

Rated Aureus N.m

0.036

0.05

0.12

0.17

0.24

0.31

0.4

0.56

0.79

1.1

1.3

1.8

2

2

2

Maximilianus. licitum onus in brevi N.m

0.6

0.6

2.4

2.4

2.4

2.4

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

Configuratio 28ZY47P-2473 DC Motor (28ZY47P-2473 DC Motor)

Reductio ratio

3.7

5.2

14

19

27

35

51

71

100

139

189

254

354

495

596

Multis impedimenta calces

1

1

2

2

2

2

3

3

3

3

4

4

4

4

4

Longitudo(L) mm

25.7

25.7

32.8

32.8

32.8

32.8

39.7

39.7

39.7

39.7

46.6

46.6

46.6

46.6

46.6

Nullus onus celeritas r / min

1968

1409

521

384

270

209

143

103

73

53

39

29

21

15

12

Rated celeritatem r / min

1660

1189

440

324

228

176

121

87

62

44

33

24

17

12

10

Rated Aureus N.m

0.042

0.059

0.14

0.2

0.28

0.36

0.47

0.66

0.93

1.3

1.6

2

2

2

2

Maximilianus. licitum onus in brevi N.m

0.6

0.6

2.4

2.4

2.4

2.4

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

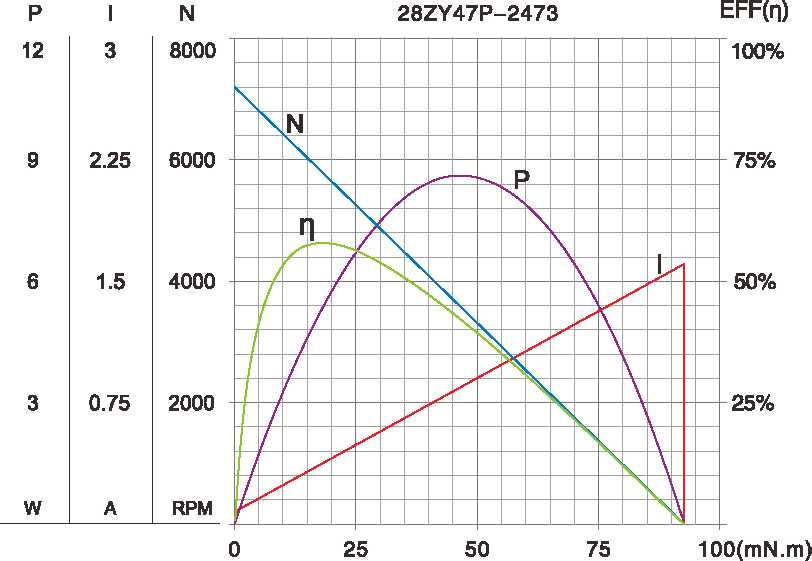

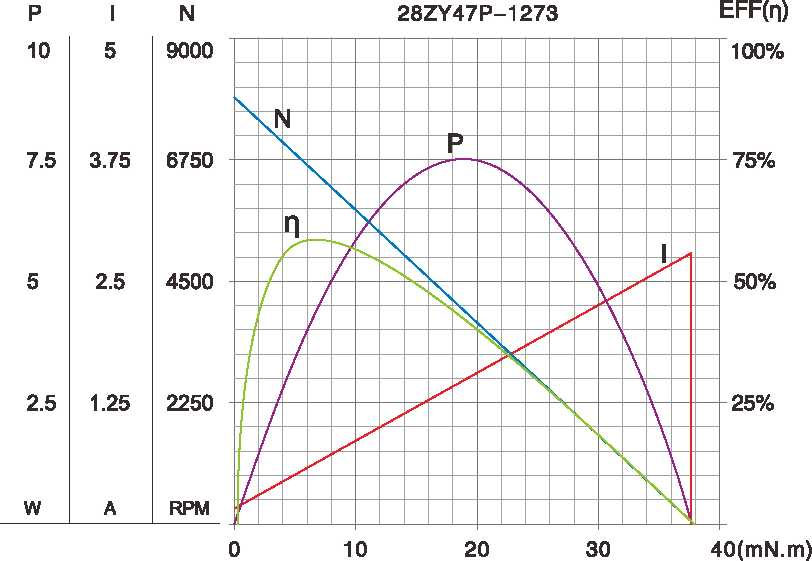

Motricium Proprium Figurae

A-10

Technical parametri sunt mutabilia sine praevia.*
