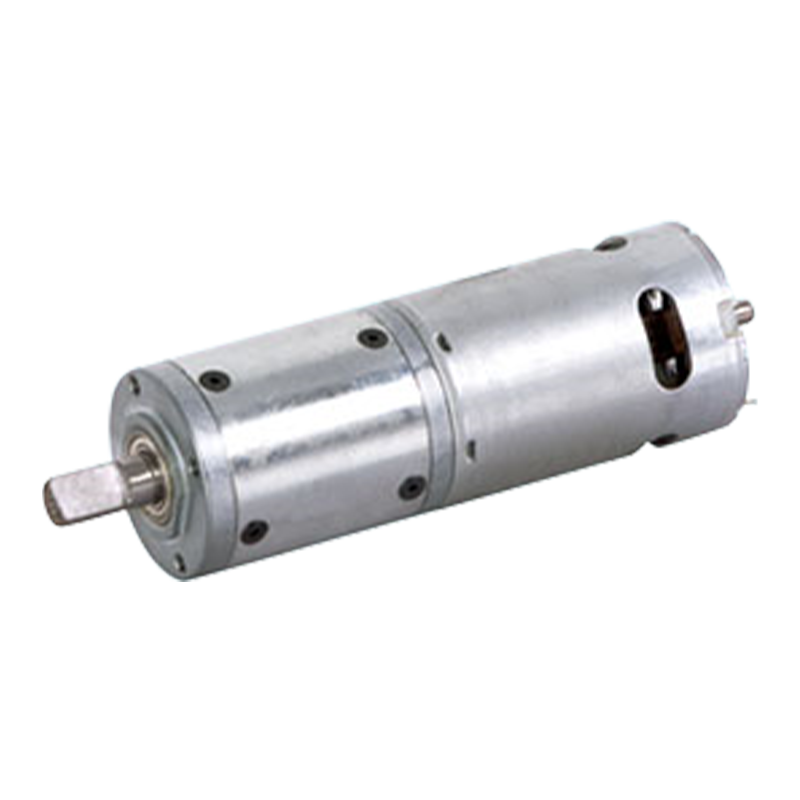

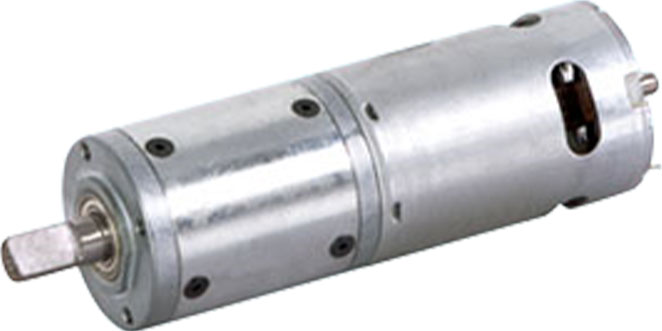

Permanent Magnet DC Brushed Planetary Gear Motor

Permanent Magnet DC Brushed Planetary Gear Motor

Magnes perpetuus DC calces planetarum motoris 42JX150K/42ZY66 est diameter externa 42 mm reducens auctus, permittens range torques: 2N.m~15N.m, celeritas nulla 5700-7700rpm.
Modus interfaciendi et temperantiae motoris sunt relative simplices, et compatibilitas cum variis moderatoribus et gyros agitantibus est bonum. Sive in institutis systematis industrialis sive in aliquibus machinis intelligentibus emergentes, facile componi et adaptari potest cum aliis elementis, consilium et progressionem systematis expediat..

  • Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquisitionis
PREV：Magnet DC Brushed Planetary Gear Motor
DEINDE：Permanent Magnet DC Motor Gear Planetary

+86 0579-86817938-836

[email protected]

42JX150K/42ZY66

42mm OD Gearbox auctus,

Licet Lond dolor: 2N.m~15N.m

PM DC Planetary Apparatus Motor (Ring Gear Material: Metal)

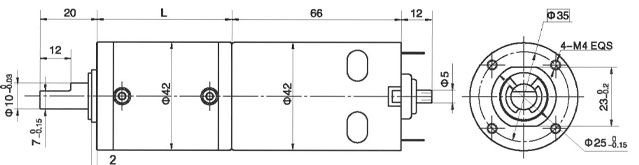

Dimensiones

Motor Technical Data

Type

Ratum Voltage VDC

Nullus onus Volo r / min

Nullus onus current mA

Rated Volo r / min

Ratum torquemN.m

Output Power W

Ratum vena mA

Armen Aureus mN.m

Armen Current A

42ZY66-1257

12

5700

0.8

4800

45

25

3

280

15.2

42ZY66-1277

12

7700

1.3

6500

65

35

5

240

20.5

Motor Technical Data Apparatus

Configuratio 42ZY66-1257 DC Motor (42ZY66-1257 DC Motor)

Reductio ratio

3.5

14

17

21

49

61

84

104

126

172

212

294

504

Multis impedimenta calces

1

2

2

2

3

3

3

3

3

4

4

4

4

Longitudo(L) mm

32.5

39.2

39.2

39.2

46

46

46

46

46

52.5

52.5

52.5

52.5

Nullus onus celeritas r / min

1628

407

335

271

116

93

68

55

45

33

27

19

11

Rated celeritatem r / min

1371

343

285

229

98

79

57

47

38

28

23

16

9.5

Rated Aureus N.m

0.14

0.51

0.61

0.76

1.6

2

2.8

3.4

4.1

5.1

6.3

8.7

15

Maximilianus. licitum onus in brevi N.m

3

12

12

12

25

25

25

25

25

30

30

30

30

Configuratio 42ZY66-1277 DC Motor (42ZY66-1277 DC Motor)

Reductio ratio

3.5

14

17

21

49

61

84

104

126

172

212

294

Multis impedimenta calces

1

2

2

2

3

3

3

3

3

4

4

4

Longitudo(L) mm

32.5

39.2

39.2

39.2

46

39.2

46

46

46

52.5

52.5

52.5

Nullus onus celeritas r / min

2200

550

453

367

157

126

92

74

61

45

36

26

Rated celeritatem r / min

1857

464

382

310

133

106

77

62

51

38

30

22

Rated Aureus N.m

0.21

0.74

0.89

1.1

2.3

2.8

4

4.9

6

8.2

9

14

Maximilianus. licitum onus in brevi N.m

3

12

12

12

25

25

25

25

25

30

30

30

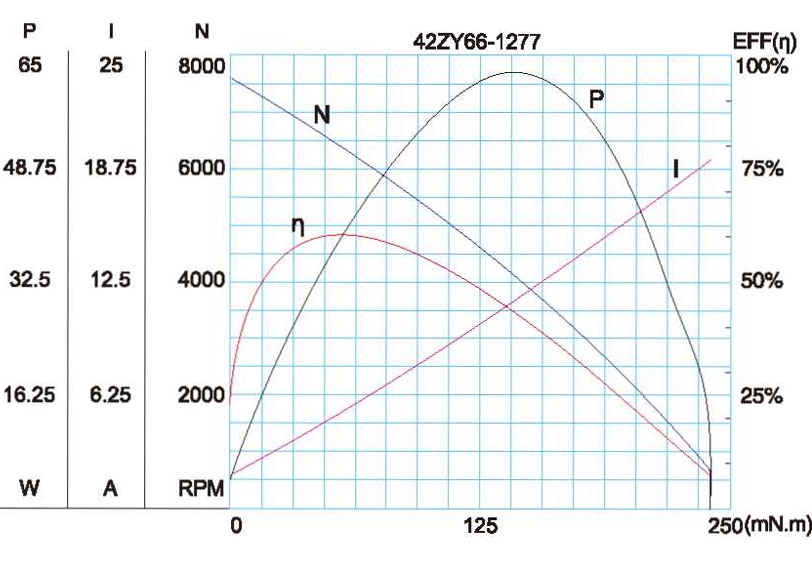

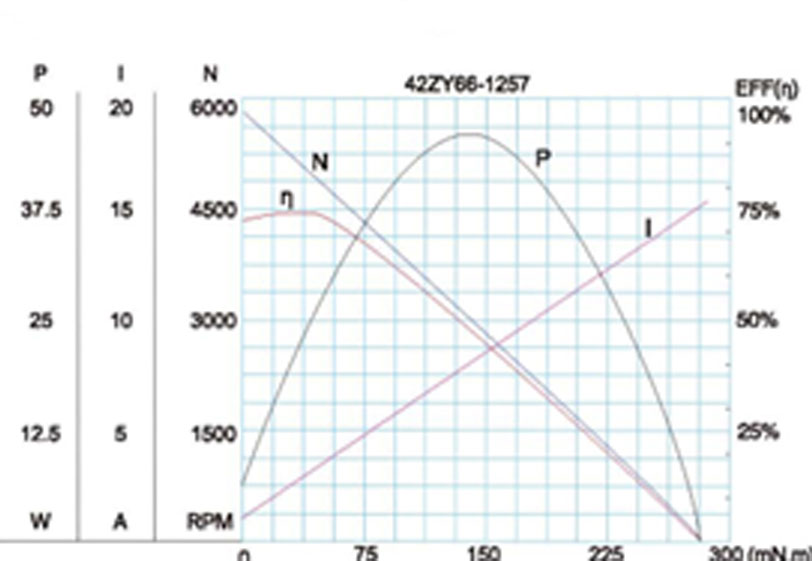

Motricium Proprium Figurae

A-19

Technical parametri sunt mutabilia sine praevia.*
