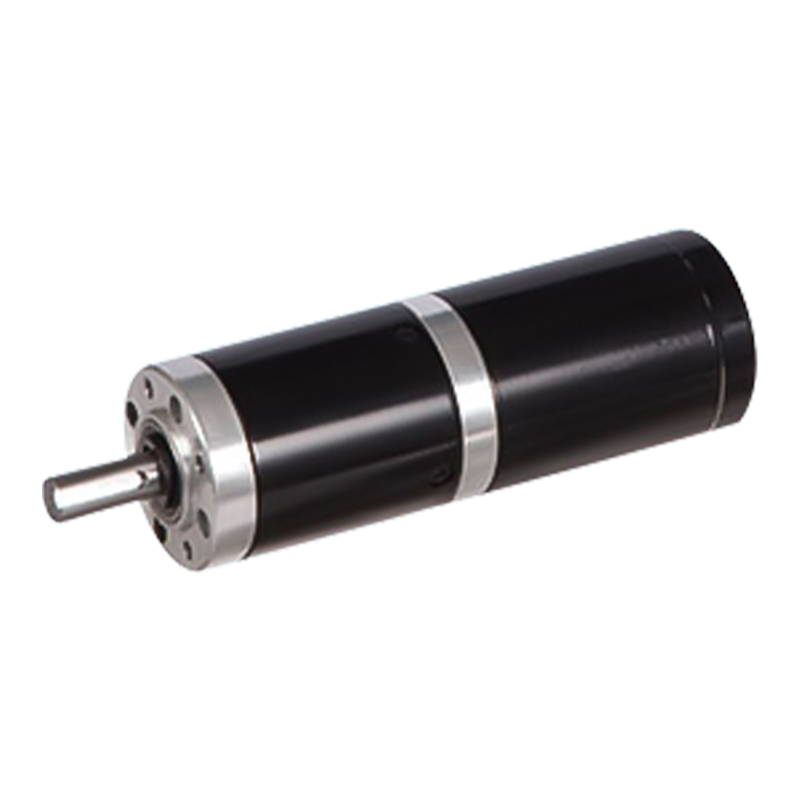

Permanent Magnet DC Brushed Planetary Gear Motor

Permanent Magnet DC Brushed Planetary Gear Motor

45JX100K/45ZY68 cum diametro exteriore 45 mm redactore roboratur, permittit range torques: 1N.m~10N.m. Nulla velocitas onus est 3000-4000rpm.
Productum magnum habet initium torques et instantaneum oneris facultatem. Penicillum in directo cum commutatore commercium est, et 2—3 temporibus Aureus aestimatus initio momento praeberi potest, quod aptum est ad scaenas quaerunt frequentes initium ac sistendum vel subitum onus (ut potentia instrumenta et ostio volvens adigunt). Aureus output amplius ampliatur ratione retardationis ad requisita gravia officiorum occurrentium sicut valvae industrialis imperium.

  • Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquisitionis
PREV：Permanent Magnet DC Motor Gear Planetarius Brushed
DEINDE：Permanent Magnet DC Motor Gear Planetarius Brushed

+86 0579-86817938-836

[email protected]

45JX100K/45ZY68

45mm OD Gearbox auctus,

Licet Lond dolor: 1N.m~10N.m

PM DC Planetary Apparatus Motor (Ring Gear Material: Metal)

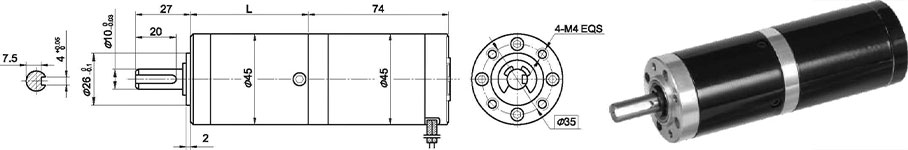

Dimensiones

Motor Technical Data

Type

Ratum Voltage VDC

Nullus onus Volo r / min

Nullus onus current mA

Rated Volo r / min

Ratum torquemN.m

Output Power W

Ratum vena mA

Armen Aureus mN.m

Armen Current A

45ZY68-2430

24

3000

0.2

2400

45

12

0.8

190

2.7

45ZY68-2440

24

4000

0.3

3200

55

18

1.2

195

3

Motor Technical Data Apparatus

Configurationis 45ZY68-2430 DC Motor (45ZY68-2430 DC Motor)

Reductio ratio

3.71

5.18

14

19

27

51

71

100

139

189

264

369

Multis impedimenta calces

1

1

2

2

2

3

3

3

3

4

4

4

Longitudo(L) mm

35.3

35.5

45.6

45.6

45.6

58.4

58.4

58.4

58.4

68.7

68.7

68.7

Nullus onus celeritas r / min

809

579

214

158

111

59

42

30

22

16

11

8.1

Rated celeritatem r / min

647

463

171

126

89

47

34

24

17

13

9.1

6.5

Rated Aureus N.m

0.15

0.21

0.51

0.69

0.98

1.7

2.3

3.3

4.6

5.6

7.8

10

Maximilianus. licitum onus in brevi N.m

3

3

12

12

12

25

25

25

25

30

30

30

Configuratio 45ZY68-2440 DC Motor (45ZY68-2440 DC Motor)

Reductio ratio

3.71

5.18

14

19

27

51

71

100

139

189

264

369

Multis impedimenta calces

1

1

2

2

2

3

3

3

3

4

4

4

Longitudo(L) mm

35.3

35.5

45.6

45.6

45.6

58.4

58.4

58.4

58.4

68.7

68.7

68.7

Nullus onus celeritas r / min

1078

772

286

211

148

78

56

40

29

21

15

11

Rated celeritatem r / min

862

617

228

168

118

62

45

32

24

17

12

8.7

Rated Aureus N.m

0.18

0.26

0.62

0.84

1.2

2

2.8

4

5.6

6.8

9.5

10

Maximilianus. licitum onus in brevi N.m

3

3

12

12

12

25

25

25

25

30

30

30

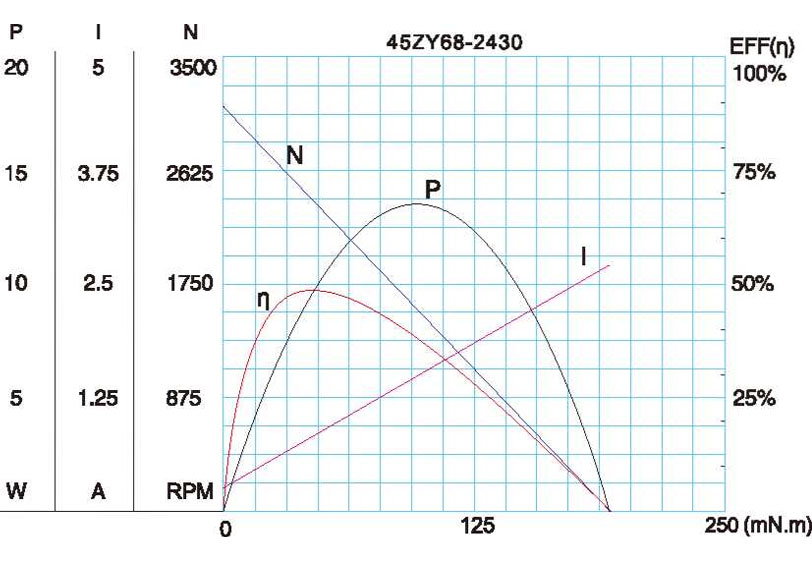

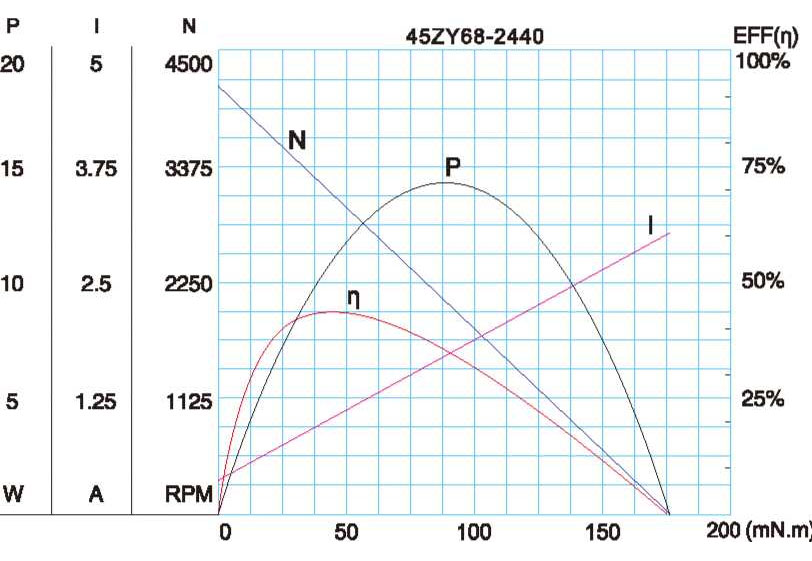

Motricium Proprium Figurae

A-22

Technical parametri sunt mutabilia sine praevia.*
