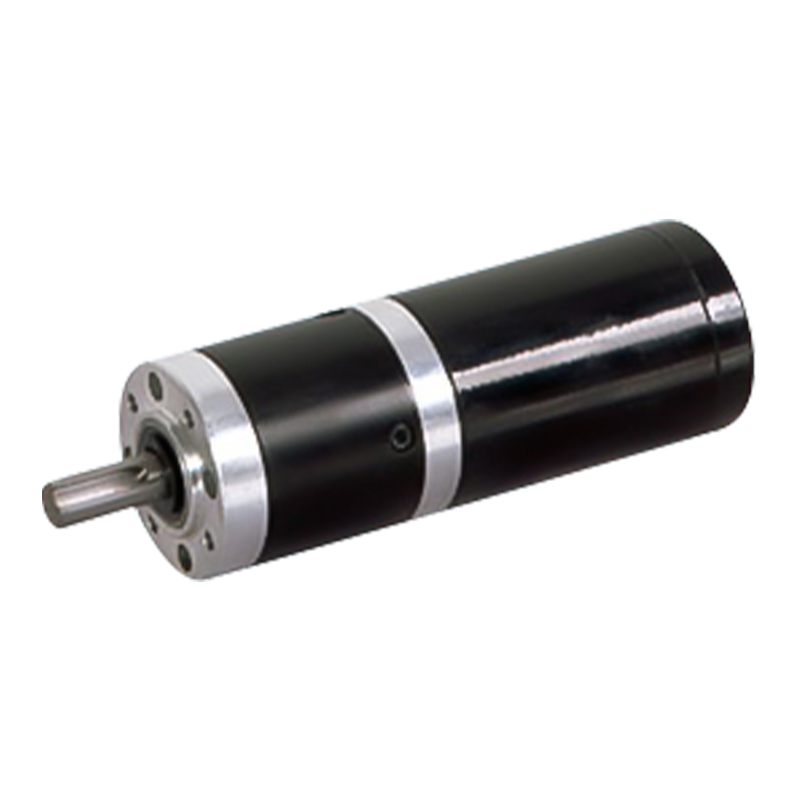

45JX100K/45ZYN68 12V/24V

45JX100K/45ZYN68 12V/24V

De 45JX100K/45ZYN68 magnetis permanentis DC machinis calces planetarum motoriis metallum calces planetarium structuram cum diametro exteriori 42 mm, compacto et magno torque output componendo. Licitus range torques: 1N.m~10N.m, sustenta 12V/24V duplicem intentionem, diversis energiae efficientiam missionibus aptam.
Potestas output huius producti notatur per altas torques et stabilis output. Mechanismus machinae calces planetariae magnam rationem tradendi consequi potest, celeritatem motoris minuere et eam in output magnum torquere, ad onera depellenda apta maiorem vim requirentem. Transmissio structura symmetrica est, vis uniformis, et operatio lenis est, quae stabilis virtutis output et torquem fluctuationem minuere potest..

  • 45JX100K/45ZYN68 12V/24V
Download Product Inquisitionis
PREV：Permanent Magnet DC L. Motor Apparatus Planetarius Gear
DEINDE：Permanent Magnet DC Motor Gear Planetarius Brushed

+86 0579-86817938-836

[email protected]

45JX100K/45ZYN68

42mm OD Gearbox auctus,

Licet Lond dolor: 13N.m~10N.m

PM DC Planetary Apparatus Motor (Ring Gear Material: Metal)

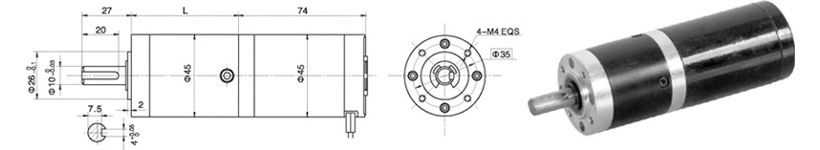

Dimensiones

Motor Technical Data

Type

Ratum Voltage VDC

Nullus onus Volo r / min

Nullus onus current mA

Rated Volo r / min

Ratum torquemN.m

Output Power W

Ratum vena mA

Armen Aureus mN.m

Armen Current A

45ZYN68-2420

24

2000

0.18

1600

42

7

0.5

220

2

45ZYN68-2430

24

3000

0.25

2400

65

16

1.2

300

4.4

45ZYN68-2440

24

4000

0.3

3200

90

30

2

375

6.8

Motor Technical Data Apparatus

Rare Terrae DC Motor (45ZYN68-2420 Rare Terrae DC Motor)

Reductio ratio

3.71

5.18

14

19

27

51

71

100

139

189

264

369

Multis impedimenta calces

1

1

2

2

2

3

3

3

3

4

4

4

Longitudo(L) mm

35.3

35.3

45.6

45.6

45.6

58.4

58.4

58.4

58.4

68.7

68.7

68.7

Nullus onus celeritas r / min

539

386

143

105

74

39

28

20

14

11

7.6

5.4

Rated celeritatem r / min

431

309

114

84

59

31

22

16

9.5

8.5

6

4.3

Rated Aureus N.m

0.14

0.2

0.34

0.65

0.92

1.6

2.2

3.1

4.2

5.2

7.3

10

Maximilianus. licitum onus in brevi N.m

3

3

12

12

12

25

25

25

25

30

30

30

Rare Terrae DC Motor (45ZYN68-2430 Rare Terrae DC Motor)

Reductio ratio

3.71

5.18

14

19

27

51

71

100

139

189

264

Multis impedimenta calces

1

1

2

2

2

3

3

3

3

4

4

Longitudo(L) mm

35.3

35.3

45.6

45.6

45.6

58.4

58.4

58.4

58.4

68.7

68.7

Nullus onus celeritas r / min

809

579

214

158

111

59

42

30

22

16

11

Rated celeritatem r / min

647

463

171

126

89

47

34

24

17

13

9.5

Rated Aureus N.m

0.22

0.3

0.74

1

1.4

2.4

3.4

4.7

6.6

8.1

10

Maximilianus. licitum onus in brevi N.m

3

3

12

12

12

25

25

25

25

30

30

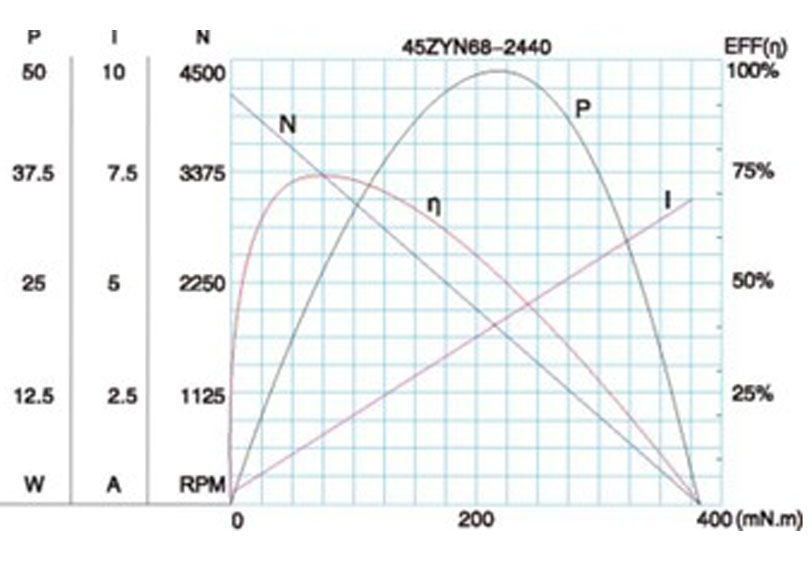

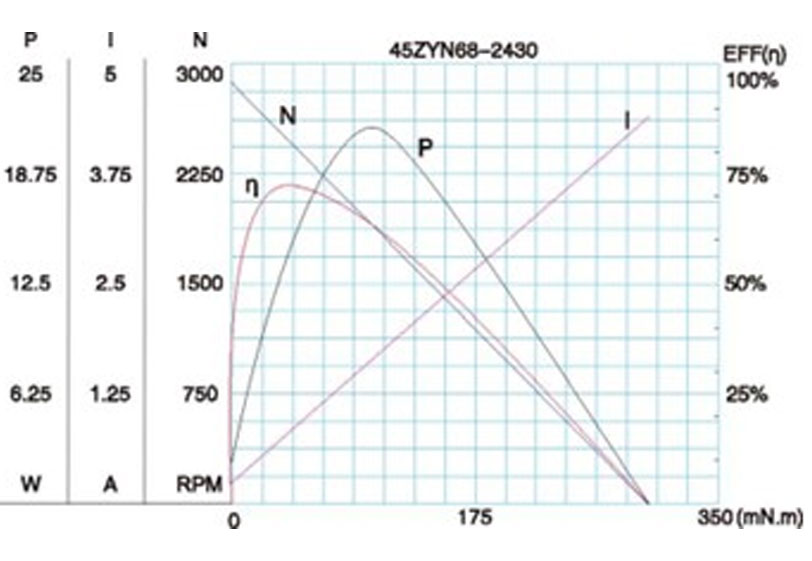

Motricium Proprium Figurae

A-24

Technical parametri sunt mutabilia sine praevia.*
