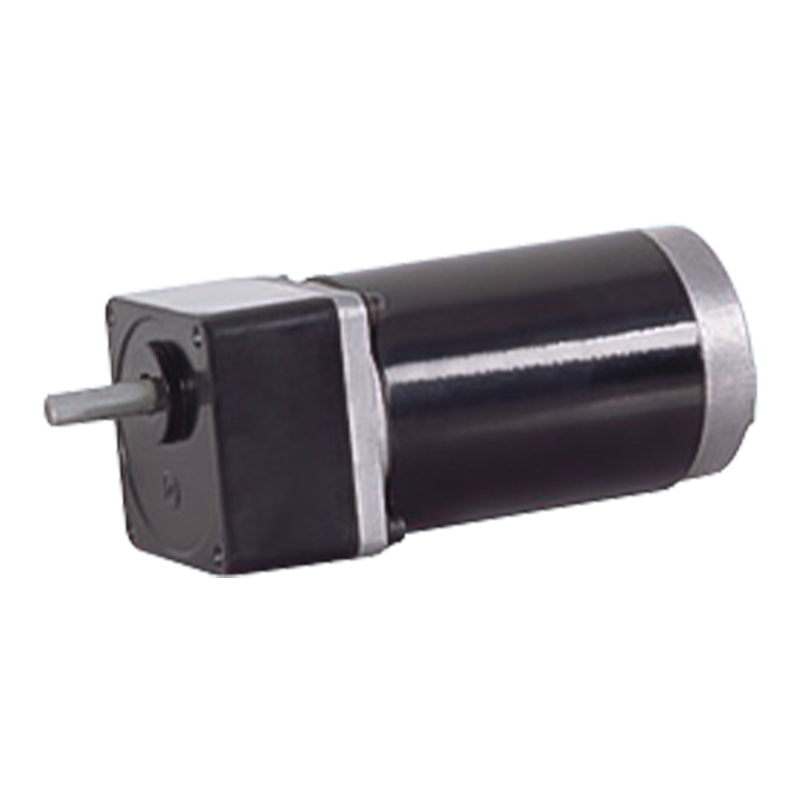

60JB50K/60ZY105 60mm Permanens Magnet DC Brushed Spur Apparatus Motor

60JB50K/60ZY105 60mm Permanens Magnet DC Brushed Spur Apparatus Motor

60JB50K/60ZY105 calces integralis est reducens cum diametro exteriore 60mm, sino onere 5.0N.m. Admisce structuris chalybeis calces, omnia volventia figuram gerens.
Comparata cum quibusdam generibus complexis motoriis, structura calces motrices parallelae unctae est relative fortis et fortis aptabilitas ad ambitus asperos habet. In nonnullis ambitibus industrialibus cum magna pulvere et alta humiditate, ut fodinae, plantae caementa, etc., motores calcei paralleli penicillo adhuc stabiliter currere possunt post propriam tutelam curationem. In environment humilis temperatus, motoris armorum paralleli perficientur parva est relative. Exempli causa, pro instrumento velit in locis frigidis, sicut aratra nivis, motores calces parallelae obstricti possunt incipere et operari normaliter in low temperaturis ut normalem operationem instrumentorum curare.

  • 60JB50K/60ZY105 60mm Permanens Magnet DC Brushed Spur Apparatus Motor
Download Product Inquisitionis
PREV：70JB80K/60ZY75 Permanens Magnet DC Brushed Spur Apparatus Motor
DEINDE：60JB50K/60ZY75 Permanens Magnet Stabilis Peniculus Calcar Apparatus Motor

+86 0579-86817938-836

[email protected]

60JB50K/60ZY105

Licet Lond dolor: 5.0 N.m

PM DC Spur Apparatus Motor

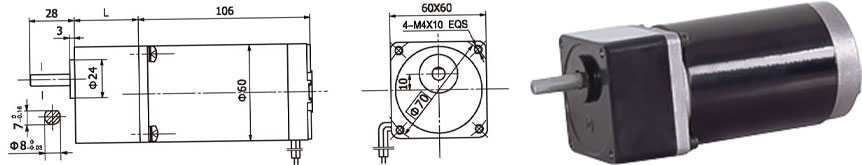

Dimensiones

60mm gearbox integrata, cum torque censi usque ad 5.0 N.m, anni stannum chalybe constructionis, omnibus globosis gestus instructi..

Motor Technical Data

EXEMPLUM

Ratum intentione VDC

Nullus onus celeritas r / min

Nullus onus current A

Rated Volo r / min

Rated Aureus N.m

Output potentia W

Ratum current A

Stall Torque N.m

Armen Current A

60ZY105-2420

24

2000

0.25

1600

0.165

30

1.8

0.76

7.3

60ZY105-2430

24

3000

0.35

2400

0.18

45

2.2

0.79

11.2

Motor Technical Data Apparatus

Configurationis 60ZY105-2420 DC Motor (60ZY105-2420 DC Motor)

Reductio ratio

3

5

6

7.5

9

10

12.5

15

20

25

30

36

40

50

Multis impedimenta calces

2

2

2

2

2

2

2

2

3

3

3

3

3

3

Longitudo(L) mm

32

32

32

32

32

32

32

32

40

40

40

40

40

40

Nullus onus celeritas r/min

667

400

333

267

222

200

160

133

100

80

67

56

50

40

celeritas rated r/min

533

320

266

213

177

160

128

106

80

64

53

44

40

32

Rated torque N.m

0.4

0.66

0.8

1

1.2

1.3

1.6

2

2.4

3

3.6

4.3

4.8

6

Maximilianus. licitum onus in brevi N.m

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

8

8

8

8

8

8

Directio rotationis

CW

CW

CW

CW

CW

CW

CW

CW

CCW

CCW

OCW

CCW

CCW

CCW

Configurationis 6OZY105_243O DC Motor (60ZY105-2430 DC Motor)

Reductio ratio

3

5

6

7.5

9

10

12.5

15

20

25

30

36

40

50

Multis impedimenta calces

2

2

2

2

2

2

2

2

3

3

3

3

3

3

Longitudo(L) mm

32

32

32

32

32

32

32

32

40

40

40

40

40

40

Nullus onus celeritas r/min

1000

600

500

400

333

300

240

200

150

120

100

83

75

60

celeritas rated r/min

800

480

400

320

266

240

192

160

120

96

80

69

62

48

Rated torque N.m

0.43

0.72

0.87

1.1

1.3

1.4

1.8

2.1

2.6

3.2

3.9

4.7

5

5

Maximilianus. licitum onus in brevi N.m

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

8

8

8

8

8

8

Directio rotationis

CW

CW

CW

CW

CW

CW

CW

CW

CCW

CCW

CCW

CCW

CCW

CCW

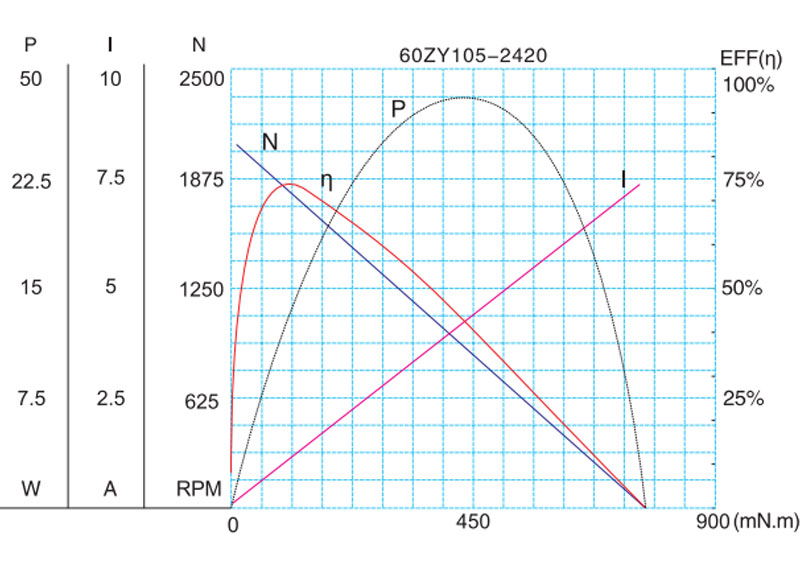

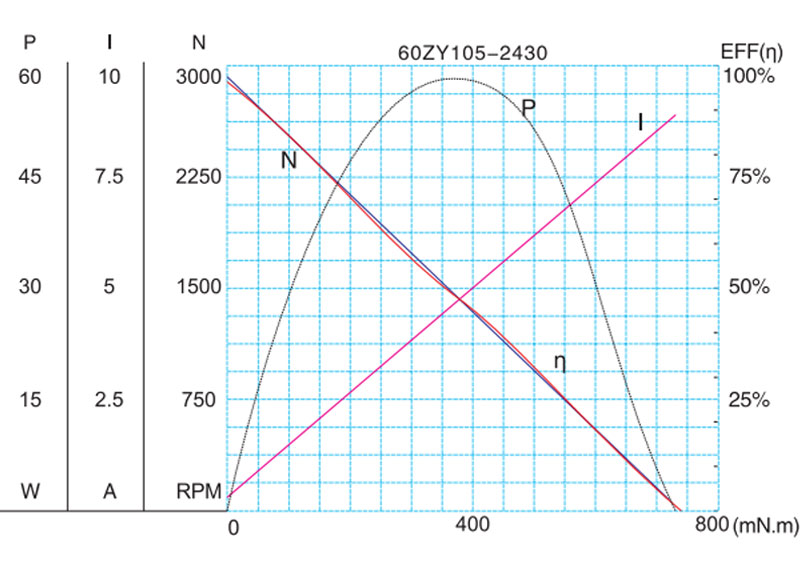

Motricium Proprium Figurae

F-9

Technical parametri sunt mutabilia sine praevia.*
