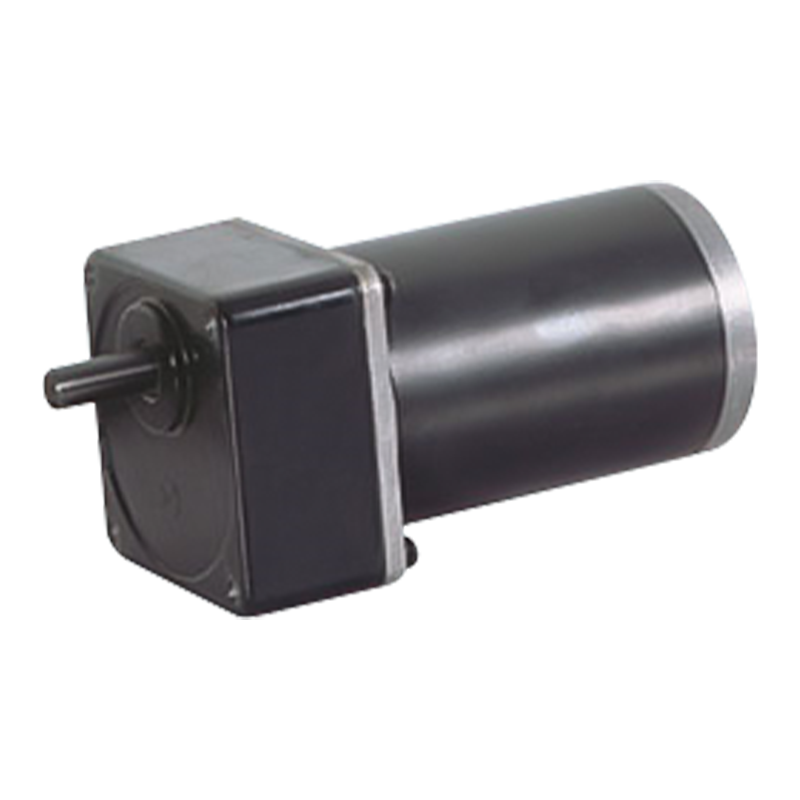

Permanent Magnet DC Spur Gear Motor

Permanent Magnet DC Spur Gear Motor

Magnes perpetuus DC calces motoris 80JB100K/80ZY100 sarcinam 10 N.m, nullo onere 2000-3000rpm permittit, et diametri exterioris 80 mm.
Secundum applicationes actuales requisitis, calces parallelas motrices motrices facile ampliari et upgraded possunt. Exempli causa, augendo numerum graduum gearbox aut ratio calces mutando, output torque amplius augeri potest vel celeritas range aptari potest ad accommodanda ad varia operandi requisita. Eodem tempore munus motoris augeri etiam potest addendo machinas auxiliares ut encoders et dumeta.

  • Permanent Magnet DC Spur Gear Motor
Download Product Inquisitionis
PREV：Permanent Magnet DC Brushed Spur Gear Motor
DEINDE：70JB80K/60ZY105 12v/24v 8N.m Magnet perpetuus DC Spur Gear Motor

+86 0579-86817938-836

[email protected]

80JB100K/80ZY100

Licet Lond dolor: 10N.m

PM DC Spur Apparatus Motor

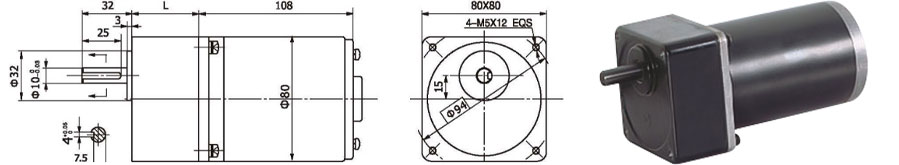

Dimensiones

80mm gearbox integrata, cum torque censi usque ad 10.0 N.m, anni stannum chalybe constructionis, omnibus globosis gestus instructi..

Motor Technical Data

EXEMPLUM

Ratum intentione VDC

Nullus onus celeritas r / min

Nullus onus current A

Rated Volo r / min

Rated Aureus N.m

Output potentia W

Ratum current A

Stall Torque N.m

Armen Current A

80ZY100-2420

24

2000

0.4

1700

0.25

45

3

1.5

16

80ZY100-2430

24

3000

0.5

2600

0.3

80

5

1.8

22

Motor Technical Data Apparatus

Configurationis 80ZY100-2420 DC Motor

Reductio ratio

3

5

6

7.5

9

10

12.5

15

18

20

25

30

36

40

50

60

75

Multis impedimenta calces

2

2

2

2

2

2

2

2

2

3

3

3

3

3

3

4

4

Longitudo(L) mm

32

32

32

32

32

32

32

32

32

43

43

43

43

43

43

43

43

Nullus onus celeritas r/min

667

400

333

267

222

200

160

133

111

100

80

67

56

50

40

33

27

celeritas rated r/min

567

340

283

227

189

170

136

113

94

85

68

57

47

43

34

28

23

Rated torque N.m

0.68

1.1

1.2

1.5

1.8

2

2.5

3

3.6

3.7

4.6

5.5

6.6

7.3

9.1

9.9

10

Maximilianus. licitum onus in brevi N.m

5

5

5

5

5

5

5

5

5

15

15

15

15

15

15

20

20

Directio rotationis

CW

CW

CW

CW

CW

CW

CW

CW

CW

CCW

CCW

CCW

CCW

CCW

CCW

CW

CW

Configurationis 80ZY100-2430 DC Motor

Reductio ratio

3

5

6

7.5

9

10

12.5

15

18

20

25

30

36

40

50

60

75

Multis impedimenta calces

2

2

2

2

2

2

2

2

2

3

3

3

3

3

3

4

4

Longitudo(L) mm

32

32

32

32

32

32

32

32

32

43

43

43

43

43

43

43

43

Nullus onus celeritas r/min

1000

600

500

400

333

300

240

200

167

150

120

100

83

75

60

50

40

celeritas rated r/min

800

520

433

347

289

260

208

173

144

130

104

87

72

65

52

43

35

Rated torque N.m

0.81

1.2

1.5

1.8

2.2

2.4

3

3.6

4.4

4.4

5.5

6.6

7.9

8.8

9.9

10

10

Maximilianus. licitum onus in brevi N.m

5

5

5

5

5

5

5

5

5

15

15

15

15

15

15

20

20

Directio rotationis

CW

CW

CW

CW

CW

CW

CW

CW

CW

CCW

CCW

CCW

CCW

CCW

CCW

CW

CW

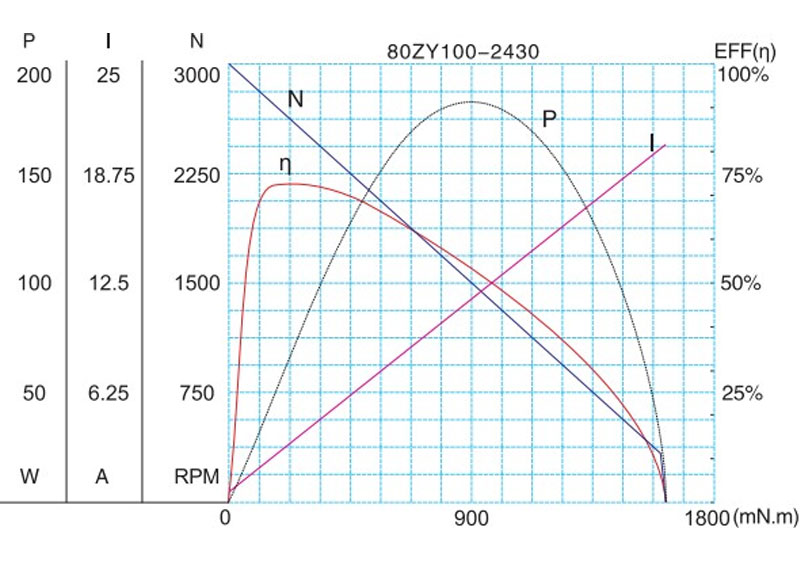

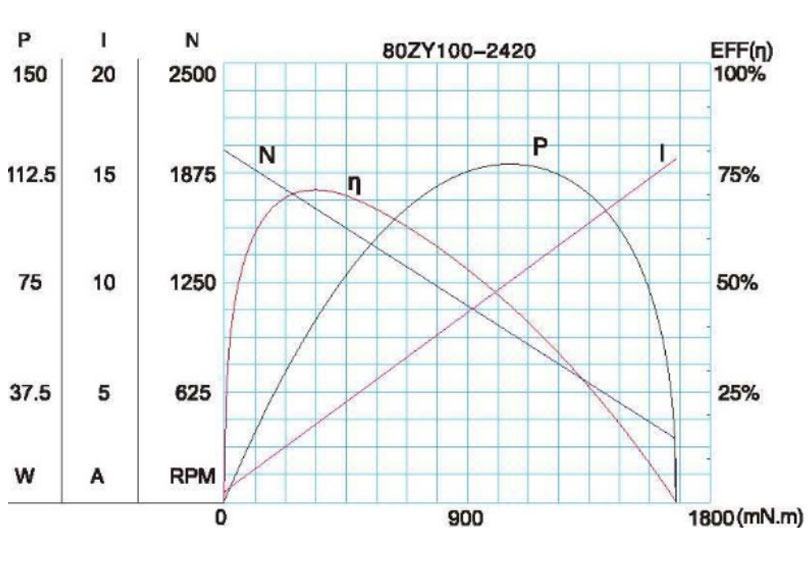

Motricium Proprium Figurae

F-12

Technical parametri sunt mutabilia sine praevia.*
