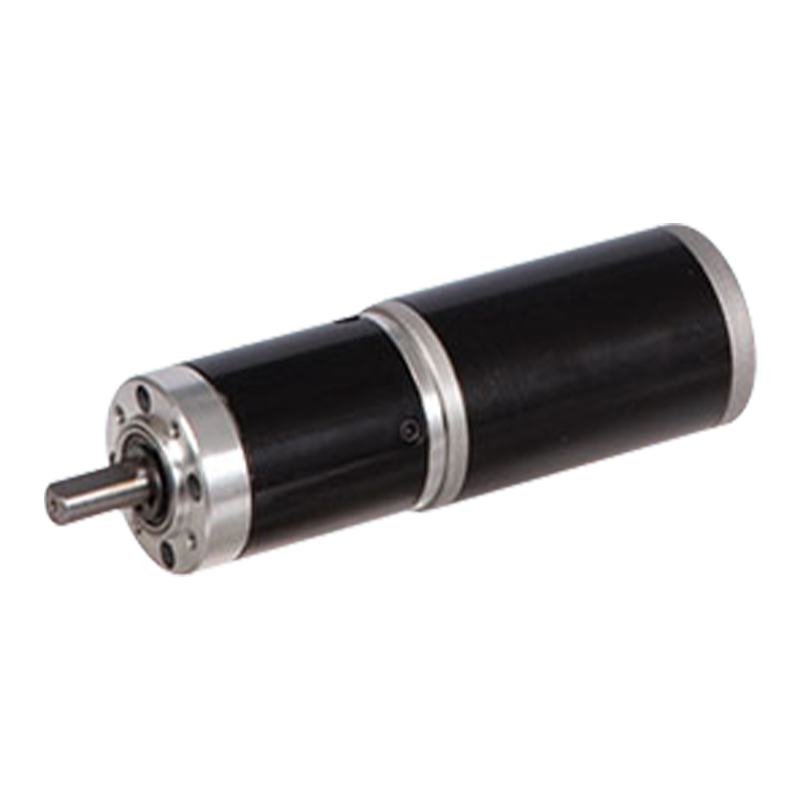

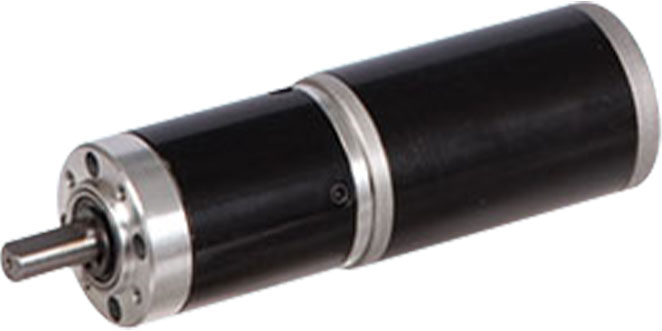

Permanent Magnet DC Brushed Planetary Gear Motor

Permanent Magnet DC Brushed Planetary Gear Motor

36JX30K/38ZY63 Magnes perpetuus DC calces planetarum motoriis anulus interior factus ex materia metallica, diametro exterior 36 mm. Suscipe 12v/24v intentionem dualem, celeritatem nullo onere 3000- 4000 rpm.
Cum magna transmissio efficientiae, technicae artis transmissio in tradenda potestate, multi anni reticulum simul, distributio oneris uniformis, efficientia transmissio relative alta est. Sub communibus adiunctis, motor calces planetarium reici potest altam efficientiam intra aestimationem oneris eminus ponere et energiae detrimentum reducere.
Industria conversionis efficientia producti melior est, quamvis frictio sit iactura inter penicillo et commutatore, altiore navitas conversionis efficientia potest occurrere postulationi applicationis missionum post rationabilem adaptationem cum calces planetarium reducente, praesertim in conditionibus operandis celeritatis mediae et infimae et altae torques, efficacia utilitas manifestior est.

  • Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquisitionis
PREV：Permanent Magnet DC Brushed Planetary Gear Motor
DEINDE：Permanent Magnet DC Motor Gear Planetarius Brushed

+86 0579-86817938-836

[email protected]

36JX30K/38ZY63

36mm OD Gearbox Planetarium,

Licet Lond dolor: 0.3N.m~3.0N.m

PM DC Planetary Apparatus Motor (Ring Gear Material: Metal)

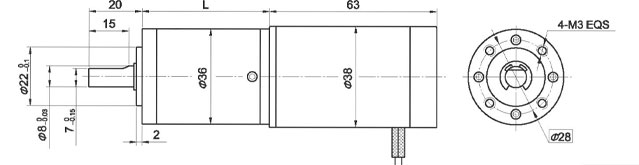

Dimensiones

Motor Technical Data

Type

Ratum Voltage VDC

Nullus onus Volo r / min

Nullus onus current mA

Rated Volo r / min

Ratum torquemN.m

Output Power W

Ratum vena mA

Armen Aureus mN.m

Armen Current A

38ZY63-2430

24

3000

160

2500

15

3.8

0.35

65

1

38ZY63-2440

24

4000

220

3200

20

6.5

0.6

90

2

Motor Technical Data Apparatus

Configurationis 36ZY85P-1230 DC Motor (36ZY85P-1230 DC Motor)

Reductio ratio

3.7

5.1

14

19

27

51

71

100

139

189

264

369

Multis impedimenta calces

1

1

2

2

2

3

3

3

3

4

4

4

Longitudo(L) mm

31

31

38.5

38.5

38.5

48.4

48.4

48.4

48.4

55.8

55.8

55.8

Nullus onus celeritas r / min

809

579

214

158

111

59

42

30

22

16

11

8

Rated celeritatem r / min

670

480

175

130

92

49

35

25

18

13

9.5

7

Rated Aureus N.m

0.05

0.07

0.17

0.23

0.33

0.56

0.78

1.1

1.5

1.8

2.6

3

Maximilianus. licitum onus in brevi N.m

1

1

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9

Configurationis 36ZY85P-2430 DC Motor (36ZY85P-2430 DC Motor)

Reductio ratio

3.7

5.1

14

19

27

51

71

100

139

189

264

369

Multis impedimenta calces

1

1

2

2

2

3

3

3

3

4

4

4

Longitudo(L) mm

31

31

38.5

38.5

38.5

48.4

48.4

48.4

48.4

55.8

55.8

55.8

Nullus onus celeritas r / min

1078

772

286

211

148

78

56

40

29

21

15

11

Rated celeritatem r / min

860

617

228

168

118

62

45

32

23

17

13

10

Rated Aureus N.m

0.067

0.093

0.23

0.31

0.44

0.74

1

1.5

2

2.5

3

3

Maximilianus. licitum onus in brevi N.m

1

1

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9

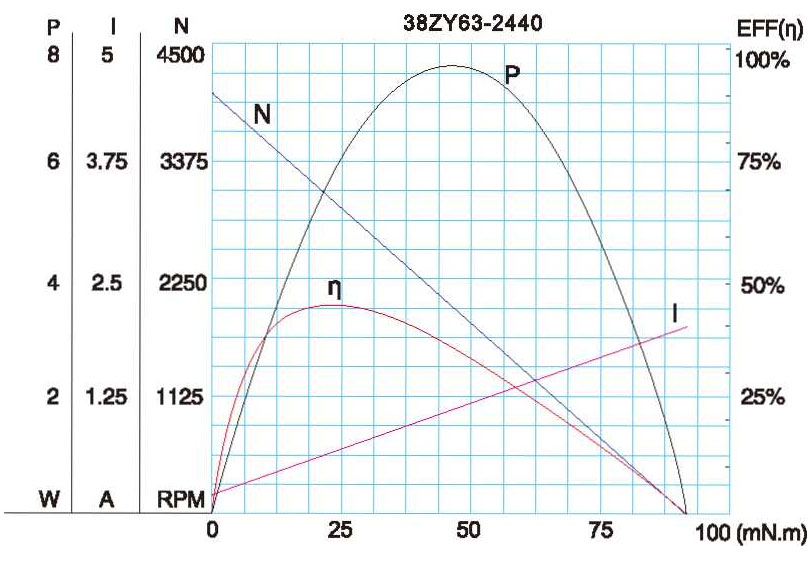

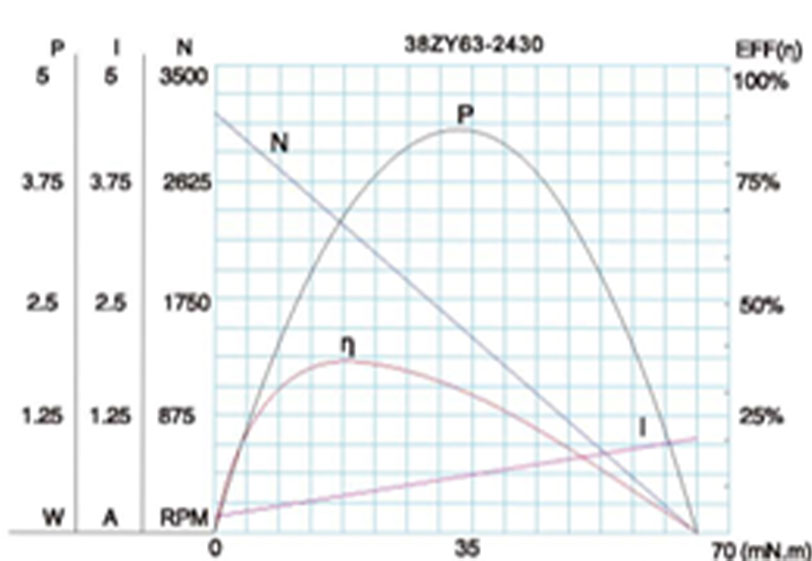

Motricium Proprium Figurae

A-14

Technical parametri sunt mutabilia sine praevia.*
