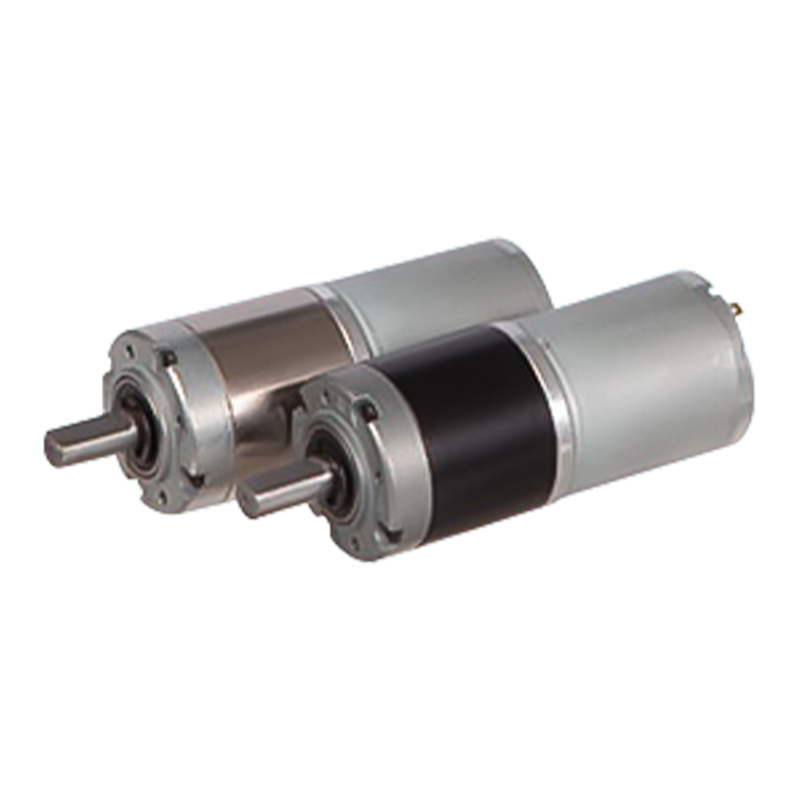

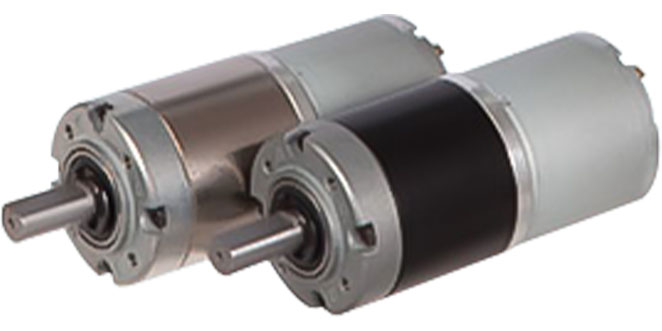

Permanent Magnet DC Brushed Planetary Gear Motor

Permanent Magnet DC Brushed Planetary Gear Motor

Anulus interior 36JXE30K/35ZY40 magnetis permanentis DC calces motoris planetarii factus est ex materia metallica cum diametro exteriori 36 mm. Suscipe 12v/24v intentionem duplicem, nullo onere velocitate 3000- 5000 rpm.
Comparatus cum quibusdam summus perficientur motoribus Brushless et systemata dicione complexa sustinentibus, sumptus motorum calces planetarum Brushless relative humilis est. Eius structura simplex, processus fabricandi matura, in sensu quodam constanti, sed requirit quandam applicationem campi exsecutionis, ut nugae, parvae adjumenta, etc., magnum pretium habet effectum..

  • Permanent Magnet DC Brushed Planetary Gear Motor
Download Product Inquisitionis
PREV：Permanent Magnet DC Motor Gear Planetarius Brushed
DEINDE：Permanent Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

36JXE30K/35ZY40

36mm OD Gearbox Planetarium,

Licet Lond dolor: 0.3N.m~3.0N.m

PM DC Planetarium Apparatus Motor (Ring Gear Material: Metallum et pulveris Metallum)

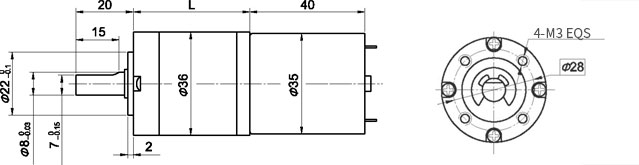

Dimensiones

Calcis anulus intra duas materias eligi potest: Metallum pulveris (Typus 36JXF30K), Metallum (Typus:36JXE30K)

Motor Technical Data

Type

Ratum Voltage VDC

Nullus onus Volo r / min

Nullus onus current mA

Rated Volo r / min

Ratum torquemN.m

Output Power W

Ratum vena mA

Armen Aureus mN.m

Armen Current A

35ZY40-1230

12

3000

90

2300

9

2.1

400

22

0.8

35ZY40-1250

12

5000

110

4300

8

3.5

600

34

2.2

Motor Technical Data Apparatus

Configure 35ZY40-1230 DC Motor (35ZY30-1230 DC Motor)

Reductio ratio

3.7

5.2

14

19

27

51

71

100

139

189

264

369

516

720

Multis impedimenta calces

1

1

2

2

2

3

3

3

3

4

4

4

4

4

Longitudo(L) mm

26.5

26.5

33.6

33.6

33.6

40.5

40.5

40.5

40.5

47.4

47.4

47.4

47.4

47.4

Nullus onus celeritas r / min

809

579

214

158

111

59

42

30

22

16

11

8.1

5.8

4.2

Rated celeritatem r / min

620

444

164

121

85

45

32

23

17

12

8.7

6.2

4.5

3.2

Rated Aureus N.m

0.03

0.042

0.1

0.14

0.2

0.34

0.47

0.66

0.91

1.1

1.5

2.2

3

3

Maximilianus. licitum onus in brevi N.m

1

1

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9

9

9

Configure 35ZY40-1250 DC Motor (35ZY40-1250 DC Motor)

Reductio ratio

3.7

5.2

14

19

27

51

71

100

139

189

264

369

516

720

Multis impedimenta calces

1

1

2

2

2

3

3

3

3

4

4

4

4

4

Longitudo(L) mm

26.5

26.5

33.6

33.6

33.6

40.5

40.5

40.5

40.5

47.4

47.4

47.4

47.4

47.4

Nullus onus celeritas r / min

1348

965

357

263

185

98

70

50

36

26

19

14

10

6.9

Rated celeritatem r / min

1159

830

307

226

159

84

61

43

31

23

16

12

8.3

6

Rated Aureus N.m

0.027

0.037

0.09

0.12

0.17

0.3

0.41

0.58

0.81

0.98

1.4

1.9

2.7

3

Maximilianus. licitum onus in brevi N.m

1

1

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9

9

9

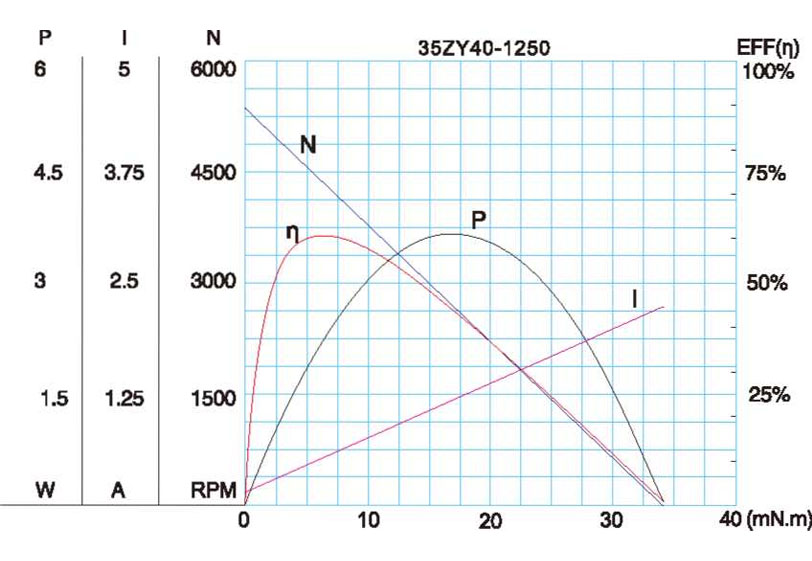

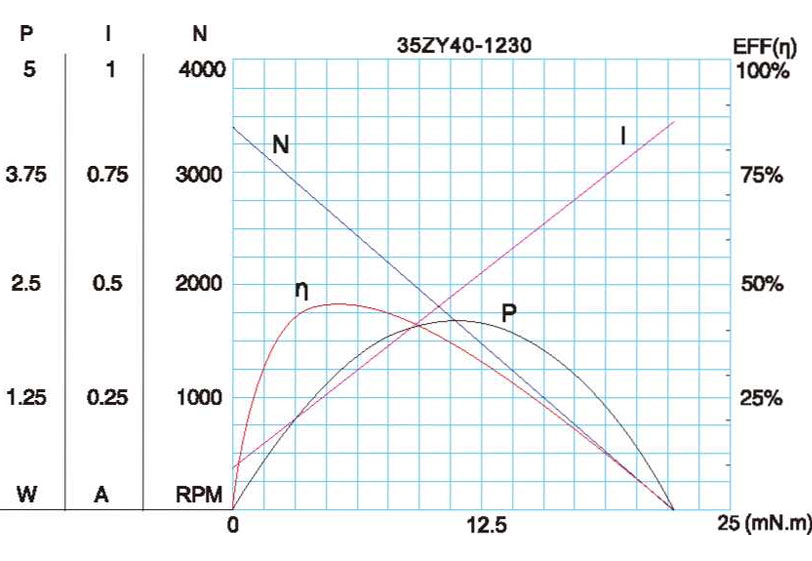

Motricium Proprium Figurae

A-16

Technical parametri sunt mutabilia sine praevia.*
