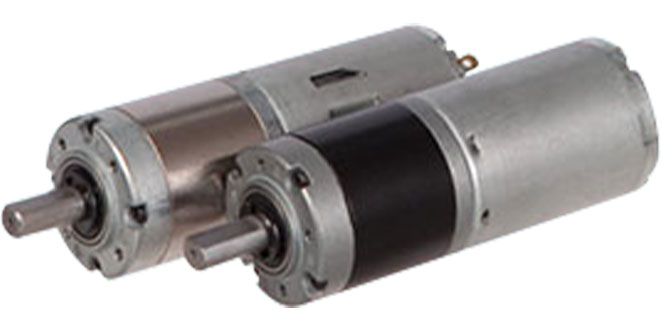

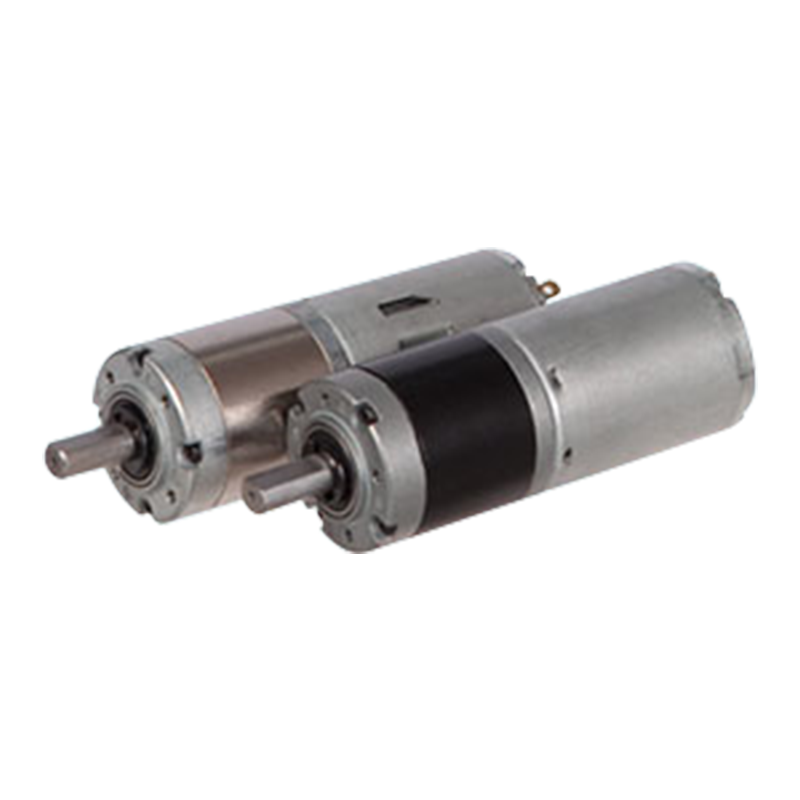

Permanent Magnet DC Motor Gear Planetarius Brushed

Permanent Magnet DC Motor Gear Planetarius Brushed

Interior materia anuli 36JXE30K/36ZY50 metalli et pulveris metalli efficitur, et inter anulum interiorem duarum materiarum: pulveris metalli (exemplum 36JXF30K) et metalli (exemplum 36JXE30K). Diameter exterior 36 mm est, amplitudo Aureus licita: 0.3N.m~3.0N.m, celeritas nulla onus 3600-4200rpm est.
Cum multiplex rotae planetarum, impetus vis distribui potest et augeri capacitas, cum penicillo motoris altitudinis torques output coniungi, condiciones oneris tolerare (ut automated linea productionis systematis coegi). Ordinatio celeritatis lenis fieri potest componendo intentione, et multi- stadii transmissionis rationi delectu annorum planetarum superimpositorum, accurate temperare celeritatem et torquem in amplitudine magna, apta ad missiones exigendas commensurationes (qualia sunt instrumenta medicinae, parva robotarum).

  • Permanent Magnet DC Motor Gear Planetarius Brushed
Download Product Inquisitionis
PREV：Permanent Magnet DC Motor Gear Planetary
DEINDE：Permanent Magnet DC Brushed Planetary Gear Motor

+86 0579-86817938-836

[email protected]

36JXE30K/36ZY50

36mm OD Gearbox Planetarium,

Licet Lond dolor: 0.3N.m~3.0N.m

PM DC Planetarium Apparatus Motor (Ring Gear Material: Metallum et pulveris Metallum)

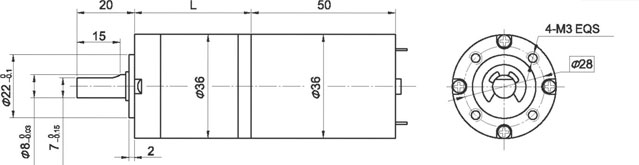

Dimensiones

Calcis anulus intra duas materias eligi potest: Metallum pulveris (Typus 36JXF30K), Metallum (Typus:36JXE30K)

Motor Technical Data

Type

Ratum Voltage VDC

Nullus onus Volo r / min

Nullus onus current mA

Rated Volo r / min

Ratum torquemN.m

Output Power W

Ratum vena mA

Armen Aureus mN.m

Armen Current A

36ZY50-2436

24

3600

100

3000

11

3.4

0.4

58

1.7

36ZY50-2442

24

4200

120

3450

12

4.2

0.43

56

1.6

Motor Technical Data Apparatus

Configurationis 36ZY50-2436 DC Motor (36ZY50-2436 DC Motor)

Reductio ratio

3.7

5.2

14

19

27

51

71

100

139

189

264

369

516

Multis impedimenta calces

1

1

2

2

2

3

3

3

3

4

4

4

4

Longitudo(L) mm

26.5

26.5

33.6

33.6

33.6

40.5

40.5

40.5

40.5

47.4

47.4

47.4

47.4

Nullus onus celeritas r / min

970

695

257

189

133

71

51

36

26

19

14

9.8

7

Rated celeritatem r / min

809

579

214

158

111

59

42

30

22

16

11

8.1

5.8

Rated Aureus N.m

0.037

0.051

0.12

0.17

0.24

0.41

0.57

0.8

1.1

1.4

1.9

2.6

3

Maximilianus. licitum onus in brevi N.m

1

1

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9

9

Configurationis 36ZY50-2442 DC Motor (36ZY50-2442 DC Motor)

Reductio ratio

3.7

5.2

14

19

27

51

71

100

139

189

264

369

516

Multis impedimenta calces

1

1

2

2

2

3

3

3

3

4

4

4

4

Longitudo(L) mm

26.5

26.5

33.6

33.6

33.6

40.5

40.5

40.5

40.5

47.4

47.4

47.4

47.4

Nullus onus celeritas r / min

1132

811

300

221

156

82

59

42

30

22

16

11

8.1

Rated celeritatem r / min

930

666

246

182

128

68

49

35

25

18

13

9.3

6.7

Rated Aureus N.m

0.04

0.056

0.14

0.18

0.26

0.45

0.62

0.88

1.2

1.5

2.1

2.9

3

Maximilianus. licitum onus in brevi N.m

1

1

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9

9

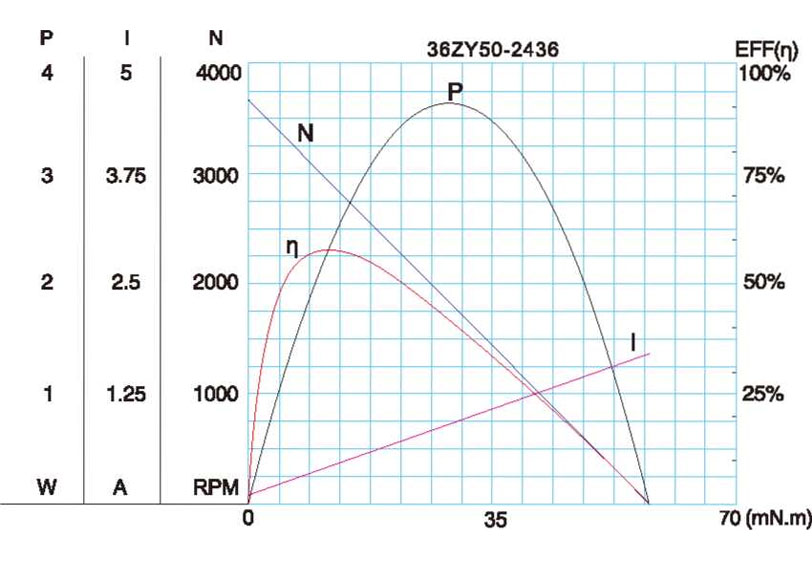

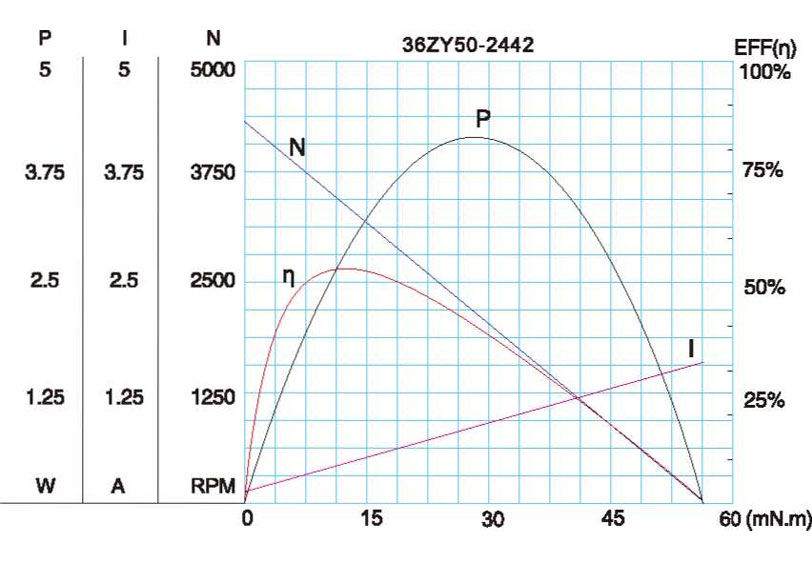

Motricium Proprium Figurae

A-17

Technical parametri sunt mutabilia sine praevia.*
